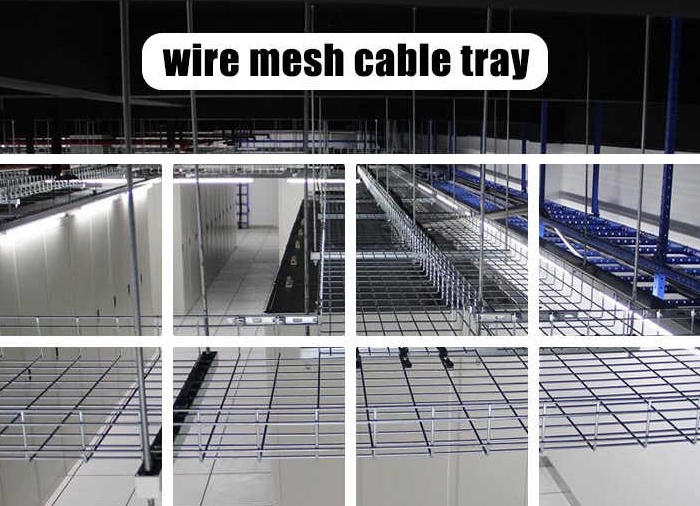

Wire mesh cable tray advantages:

1.Easy checking and cleaning
2.Flexible and fast installation
3.Compared with the normal cable tray wire mesh cable trays have no horizontal Tee, cross and other connectors, it makes cost much lower
4.Ventilation
5.Light weight and flexibly
6.To prevent dust for deposition.
7.Excellent heat dissipation

Surface finish

1. HDG-Normally the thickness of zinc is between 60micron-70micron on average.This finishing is widely used in outdoor projects and corrosive environment.
2. Pre-galvanized steel sheet:in accordance with ASTM 653/A 653M.The coating is smooth,ductile and adherent.This finish is suitable indoors.
3.Powder coating:any color you can choose.It is good looking and good at corrosion resistance.Normally it is used in indoor projects.


We can customize cable tray according to your requirements, including maximumly-permitted cable tray.

Cable trunking price list
Note: Due to the products is Customized one, Above price is NOT CORRECT, Please send me your detailed products requirement(materials, diameter, specification, surfacetreatment, Drawings) and order quantity to get an accurate quote. Tks!

Galvanized cable tray is the most cost-effective
Best Selling cable tray is hot dip galvanized steel cable tray

CTLINK-TX The following size sheet for your reference

TX25 Series Wire Mesh Cable Tray (height=25mm)

TX  Height(mm)-Width(mm)-Length(mm)-Dia(mm)                    1Inch=25mm

TX25-50-3000-5

TX25-75-3000-5

TX25-100-3000-5

TX25-150-3000-5

TX25-200-3000-5

TX25-300-3000-5

TX25-400-3000-5

TX25-450-3000-5

TX25-500-3000-5

TX25-600-3000-5

TX50 Series Wire Mesh Cable Tray (height=50mm)
TX Height(mm)-Width(mm)-Length(mm)-Dia(mm)                     1Inch=25mm
TX50-50-3000-5
TX50-75-3000-5
TX50-100-3000-5
TX50-150-3000-5
TX50-200-3000-5
TX50-300-3000-5
TX50-400-3000-5
TX50-450-3000-5
TX50-500-3000-5
TX50-600-3000-5

TX75 Series Wire Mesh Cable Tray (height=75mm)
TX Height(mm)-Width(mm)-Length(mm)-Dia(mm)             1Inch=50mm
TX75-100-3000-5
TX75-150-3000-5
TX75-200-3000-5
TX75-300-3000-5
TX75-400-3000-5
TX75-450-3000-5
TX75-500-3000-5
TX75-600-3000-5

TX100 Series Wire Mesh Cable Tray (height=100mm)
TX Height(mm)-Width(mm)-Length(mm)-Dia(mm)                   1Inch=25mm
TX100-100-3000-5
TX100-150-3000-5
TX100-200-3000-5
TX100-300-3000-5
TX100-400-3000-5
TX100-450-3000-5
TX100-500-3000-5
TX100-600-3000-5

TX150 Series Wire Mesh Cable Tray (height=150mm)
TX Height(mm)-Width(mm)-Length(mm)-Dia(mm)      1Inch=25mm
TX150-100-3000-5
TX150-150-3000-5
TX150-200-3000-5
TX150-300-3000-5
TX150-400-3000-5
TX150-450-3000-5
TX150-500-3000-5
TX150-600-3000-5

TX200 Series Wire Mesh Cable Tray (height=200mm)
TX Height(mm)-Width(mm)-Length(mm)-Dia(mm) 1Inch=25mm
TX200-100-3000-5
TX200-150-3000-5
TX200-200-3000-5
TX200-300-3000-5
TX200-400-3000-5
TX200-450-3000-5
TX200-500-3000-5
TX200-600-3000-5
