Cement Infilled Steel Raised Floor
The raised floor is a system of modular elements designed for the creation of floor coverings for buildings’ indoor and outdoor spaces. This technology is extremely practical because it creates a continuous void under the floor surface that can be utilized to route all technical systems. Thanks to its usage flexibility, easy and fast installation and diverse range of coverings, it can also be applied in building renovations and can even be installed on top of existing floor coverings.
1. High dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility
Quality, Reliability, and Sustainability in Raised Floor Technology
CTLINK Group offers solutions for raised access floor systems combining high quality and aesthetic with functionality and safety, from headquarters corporation offices to government buildings, libraries, casinos, airports, data processing centers, laboratories, and other facilities.
Raised Access Floor Systems are modular, made up of tiles which are supported on a steel structure with different heights to achieve different levels. All raised floor panels are independent and identical which allows the exchange among themselves and the access to the remaining space underneath.
CTLINK Group manufactures raised access floor innovative solutions adjustable to any project. They cover all the needs of access to facilities, raised areas and space organization, saving in maintenance costs and gaining high aesthetic level for the building.
PRODUCTS FOUND

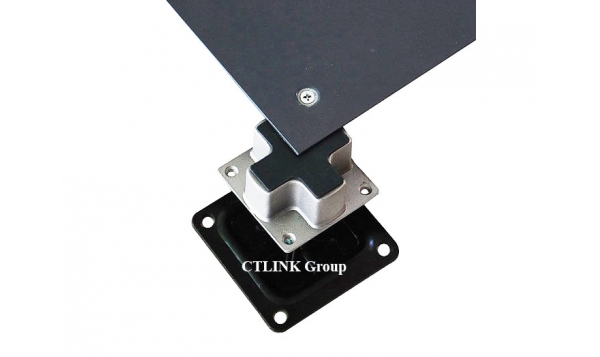

500mm OA/ Bare Finish Steel Raised Access Floor System
500mm OA/ Bare Steel Cement Raised Floor
- Fireproof class A, moistureproof, dustrpoof, corrosion prevention
- High dimensional precision, strong loadability and shockproof
- Adjustable height for pedestal, assembly agility, large wire, good exchangeability
- Elegant appearance for paving wildly brand top tiles
- Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
- High recycled, convenient removing, saving cost, long performance life
Anti-static HPL raised floor for data center
This product is made of quality steel plate, which is stretched forming, point welded and plastic sprayed with bubble cement filler filled in its inner cavity. The fire-resistant decoration plates that can endure high temperature adhere to its surface with conductive chips embedded around it. The pedestals and cross beams are wholly plated with zinc and the height of pedestals is adjustable and can be self-locked.

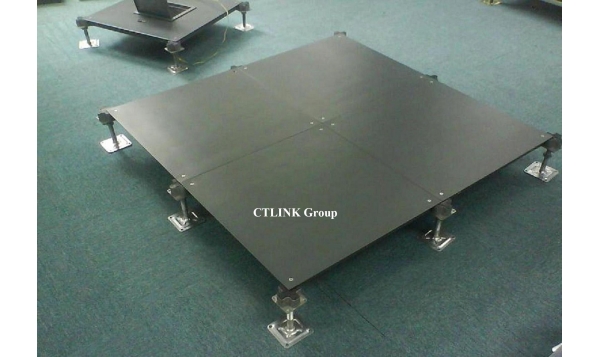

600mm OA/ Bare raised access floor
Concrete Core Steel Bare Panels Concrete core steel bare panels are consisted of a flat steel top sheet welded to a formed steel bottom sheet filled with full light weight cement and steel surface are epoxy powder coated, which are also called "cementitious infilled steel bare panels".

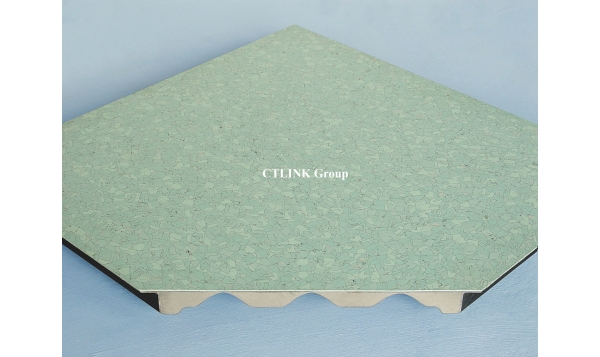

Conductive PVC/Vinyl steel raised floor
PVC conductive vinyl tile is used both for raised floors and other flooring. This product has a permanent anti-static function because of the conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble for a decorative appeal.

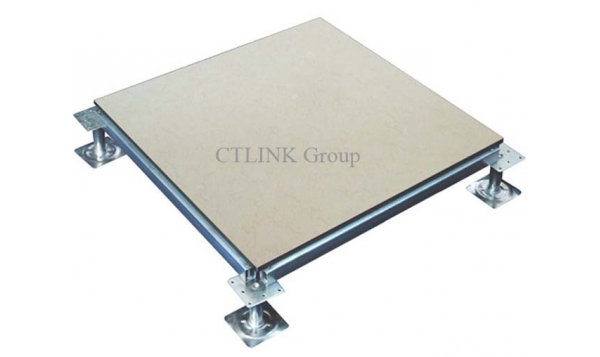

Ceramic steel raised floor
CTLINK® RAISED ACCESS FLOOR SYSTEM
CERAMIC STEEL RAISED FLOORING- Item: Steel raised floor with Ceramic/Porcelain Tiles
- No.: CFS01
- Specifications: 600×600×40/ 45 mm
- Panel material: Steel + Lightweight Cement
