Steel Perforated Panel 45%

CTLINK All-Steel Airflow Raised Flooring System - Perforated Access Floor

All steel perforated raised flooring from ctlink-group.com is compatible with any bolted stringer Raised Floor systems and offer between 17% to 75% free airflow rate. Our all-steel perforated raised floor provides superior cooling for managing heat loads in mission-critical facilities to be available with top surface adjustable damper and  it is the same size and finish as the solid panel, so they are ideal for High-Pressure Laminate, vinyl and rubber access floor coverings are available as well, Vinyl floor coverings interchangeable with woodcore panel/calcium sulphate perforated panel/tile.

CTLINK All-Steel Perforated Raised Floor Details

• All Steel Access Floor Tiles made by high-precision stamping machinery

• This system composed by hollow panel, stringer, pedestal and screws

• Covering of Panel: HPL(High press laminates), PVC

• Size 600mmx600mm, Thickness 30mm/ 35mm/ 40mm/ 50mm/ 55mm and panel weight 8.5kg ≤ M ≤ 13.5kg

• Concentrated load: 800 LB, 1000 LB, 1250 LB etc

• Weight of Panel: About 9 -13 kgs

• Certificate: ISO9001, ISO14001, MOB, Non-combustible according to BS 476: Part 4: 1970 and Class A flame spread and smoke developed rating, and Cisca Standard

• CTLINK Supply Ability: 80000 Square Meter/Square Meters per Month

Ventilation Rate of Our Access Floor Airflow Tiles

• Main Air Flow Rate of our Perforated Raised Floor: 45%

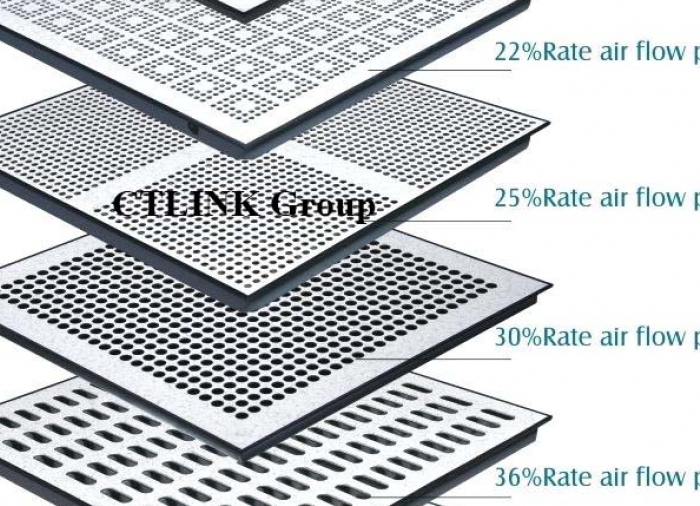

• Other rate for option: 20%, 22%, 25%, 30%, 35%, 41%, 45% and 75%.


Applications

CTLINK All Steel Perforated Raised Floor combines with the characteristics and features of all steel access floor and perforated raised floor, it can be widely used in typical data centers, computer room, telecommunication rooms, electronic assembly areas, Cleanrooms in the field of research and production, Fields of research and production with low particles requirement, Assembly, conference and meeting rooms, Office areas (laminar air flow), general purpose  equipment applications of access floor and more areas for air-conditioning of machinery.

Principle of Use

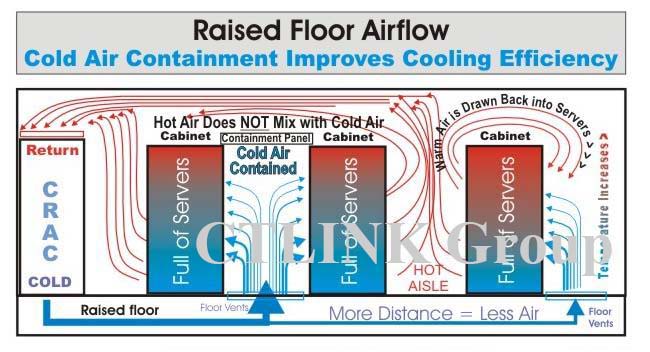

The combination of the perforated all steel raised floor tile and the replacement air conditioner form a cold air flow area, and the electrostatic floor is paved to form a bottom air supply passage, then air is blown in the passage between the machine room cabinets.


Related Products

Air Flow Control Valves: Adjust the ventilation rate

Air Distribution Unit: Adjust the air supply volume. A plurality of small fans are installed inside, and the operating state of the fan is automatically adjusted according to the temperature condition of the upper space, thereby producing a constant and controllable effect of maintaining the temperature of the floor production space.

Benefits

• Allow for air flow distribution from under the raised access floor

• Easy to adapt into your existing raised access floor system

• Lightweight for ease of handling

• Excellent ultimate load performance

• Epoxy finish for lifetime protection

• Interchangeable with other panel strengths

• Completely non-combustible

• Excellent grounding and electrical continuity

• Flame spread and smoke development rating: Class A

• High strength and durability


Views From Different Angles

Top View:

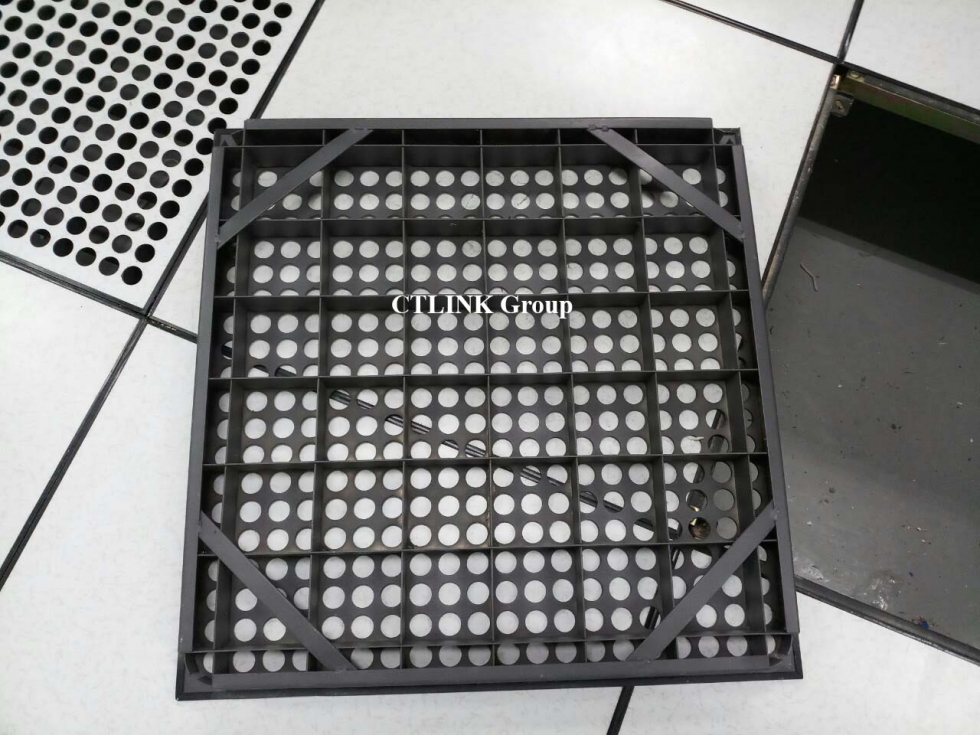

Bottom View:

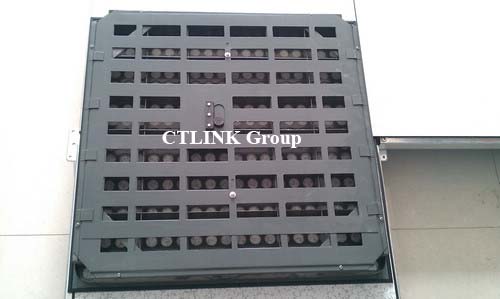

Slide Damper

Technicial Specification



Size: 600*600mm

Thickness: 30/ 32/ 35/ 40/ 50/ 55mm

Material: all steel
