Anti Static/ ESD Plastic Flooring Homogeneous Eco-friendly

Code:

Price: Contact

Dimension: mm

Guarantee: Year

Price unit: /m2

Weight: kg

*ESD ANTI STATIC HOMOGENEOUS FLOOR Eco-friendly:

Non-toxic, Formaldehydeless , Free of heavy metals, No soluble volatile matter
* ESD ANTI STATIC HOMOGENEOUS FLOOR Healthy:

Antibacterial, Mouldproof, Anticorrosive, No smell
* ESD ANTI STATIC HOMOGENEOUS FLOOR Safe:

Non-slip, Anti-static, water-proof, fire-proof
* ESD ANTI STATIC HOMOGENEOUS FLOOR Comfortable:

Temperature constancy, Suitable elasticity, Absorption and noise reduction
* ESD ANTI STATIC HOMOGENEOUS FLOOR Beautiful:

Various of pattern and color can be chose, Beautiful and fashion
* ESD ANTI STATIC HOMOGENEOUS FLOOR Long life:

We use advance technology to make our products more pressureproof wearable and Impact resistance

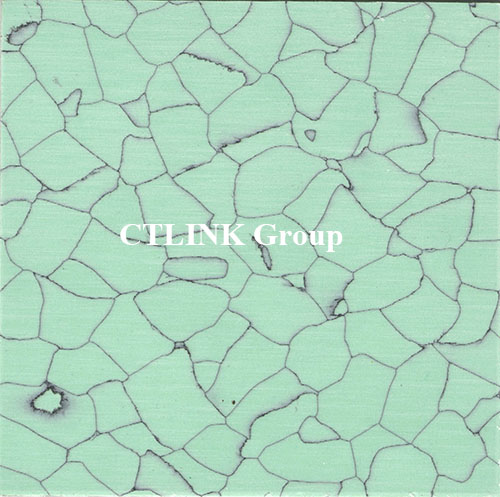

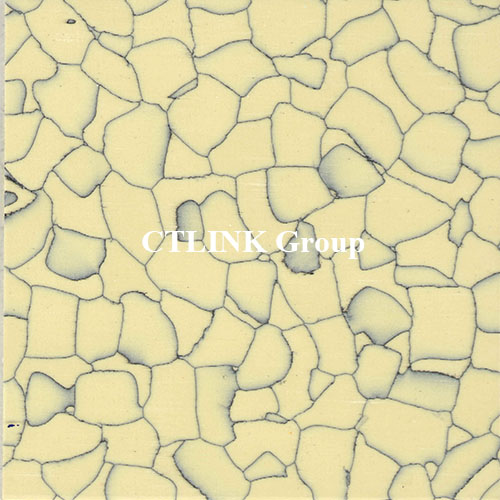

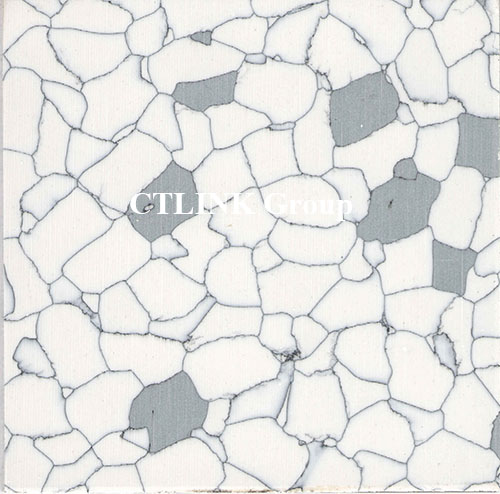

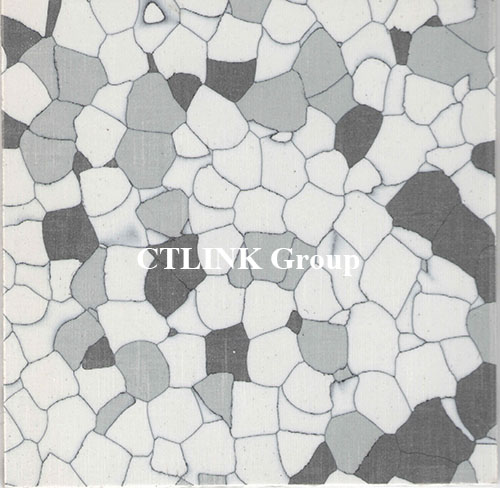

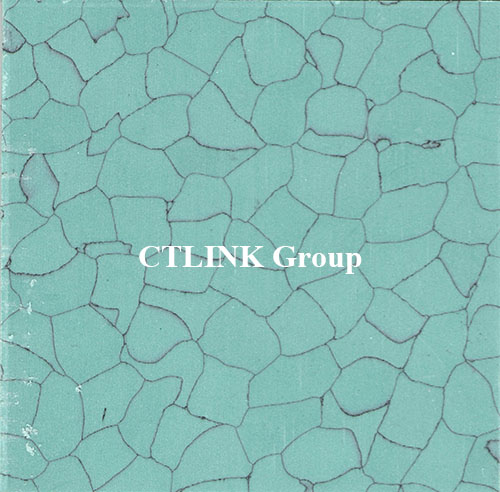

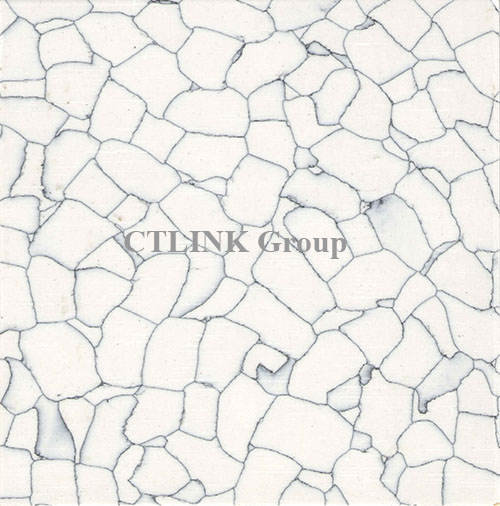

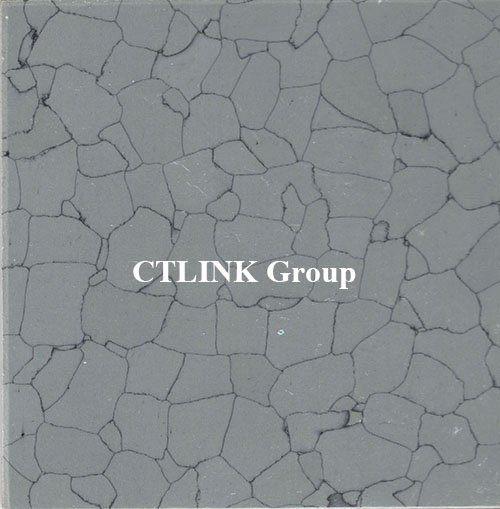

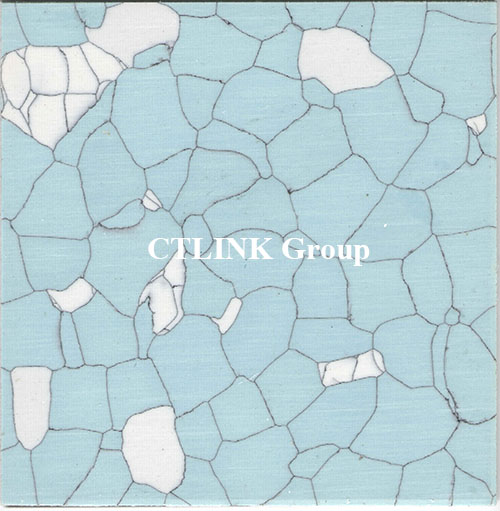

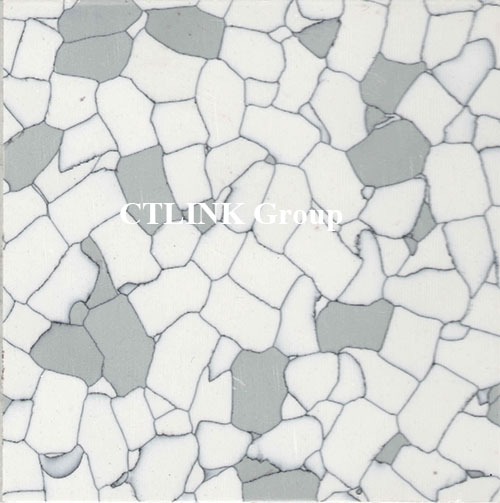

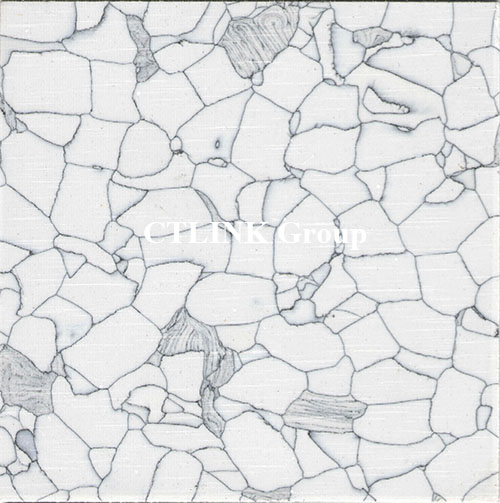

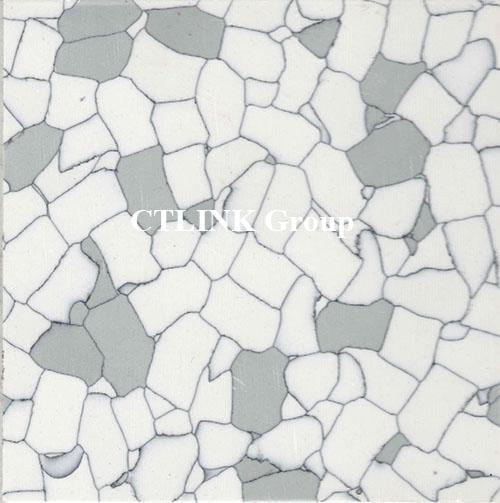

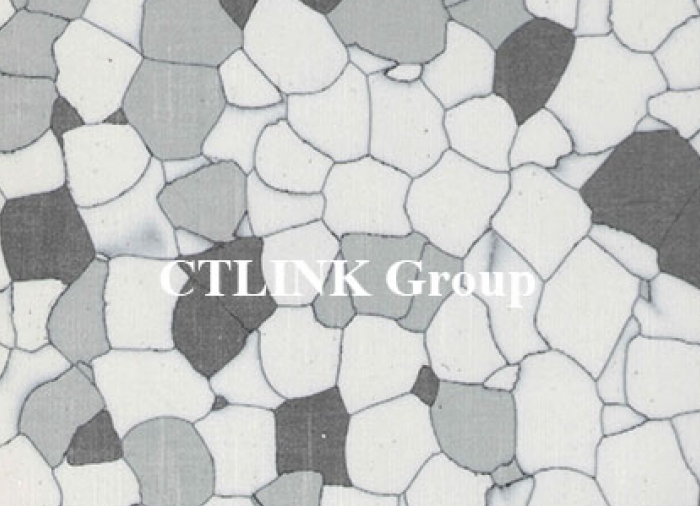

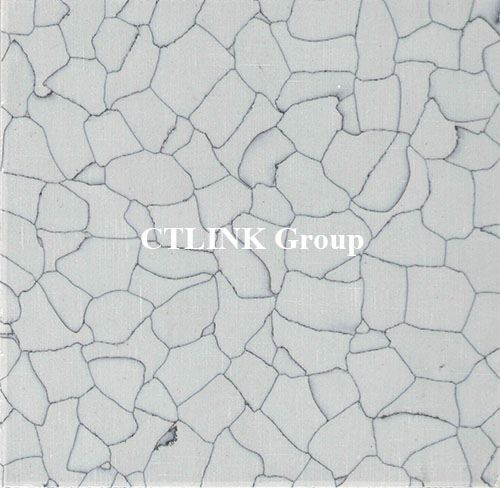

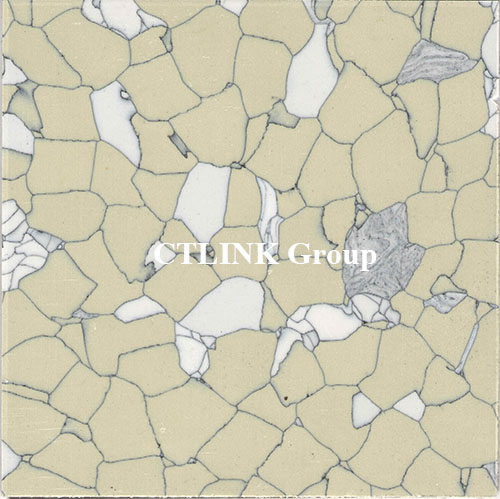

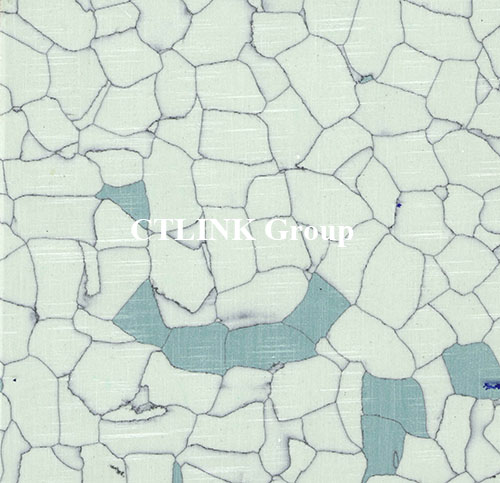

Color

Technical specifications

Hot Sale Eco-friendly 2 mm Homogeneous PVC Anti Static Conductive Vinyl Flooring Material Vinyl Tiles ESD Plastic Flooring

Our Advantages

TECHNICAL DATA
TECHNICAL DATA
Item	Standard	Result
THICKNESS	EN426	2.0mm,3.0mm（customized service）
SIZE	EN426	600x600mm,900x900mm
WEIGHT	EN430	3.8Kg/2.0mm,5.8Kg/3.0mm
ELECTRIC PROPERTIES	DIN51953 ASTM F-150 OR NFPA99	conductive tile 10^4~10^6 ohm
ELECTRIC PROPERTIES	DIN51953 ASTM F-150 OR NFPA99	DISSIPATIVE 10^6~10^9 ohm
DECAY TIME	SJ/T10694-2006(±1000V±100V≤2s)	EQUAL 0.4S
CHARGE VOLTAGE	SJ/T10694-2006(ⅠVⅠ<100V)	EQUAL 70
FIRE RESISTANCE	DIN4102	B1
COMBUSTION PROPERTIES	SJ/T11236-2001(<10S,reach FV-0)	EQUAL 0.35IFV-0
AMOUNT OF ANTI WEAR	SJ/T11236-2001(≤0.020g/cm 21000r)	EQUAL0.014
ANTI-WEAR PROPERTIES	EN660pt2	ITEN-T<2.0mm3
WHEEL PRESURE	EN425	No influence
RESIDUAL CONAVITY	EN433/DIN51955	0.03mm(2.0mm)

		0.04mm(3.0mm)
DIMENTIONAL STABILITY	EN 434	≤0.2%
COLOR FASTNESS	ISO105BO2	At least 6
RESISTANCE TO CHEMICALS	DIN423/DIN51958	Good
IMPACT SOUND ABSORPTION	VLI,ISO104,ISO717	Approx 2dB

TEST PARAMETER
Item	Standard	Data
Electrical Resistance(Ω)	SJ/T11236-2001	Conductive: 10000-1000000 Ω
Electrical Resistance(Ω)	EN1081	Static-dissipative: 1000000-1000000000Ω
Stating Voltage	SJ/T11236-2001	50V , 100V
Stating Voltage	AATCC-134	\|V\|<100V
Static Decay(s)	GJB2605-1996	≤2
Static Decay(s)	FTM1080-4046	0.01 ， 0.01
Fire Resistance	SJ/T11236-2001	FV-0
Fire Resistance	EN13501-1	Bfl-s1
Slip Resistance Wet	DIN 51130	R9
Slip Resistance Wet	EN13893	≥0.3
Residual Concavity	SJ/T11236-2001	≤0.10
Residual Concavity	EN433	0.03
Effect of Castor Chair	EN425	No delamination No cracks
Formaldehyde Emission	EN717-1	None
Color Fastness	ISO 105B 02	≥6
Chemical Products Resistance	EN ISO 26987:2012	OK
Toxic Texting	EN 71-3	OK
	GB 18586-2001
Smoke Production	GB8624-2006	≤750%,min
Anti-bacterial	ISO 22196	Rate I
Impact Sound Absorption	EN 0717/2	Approx 2dB
