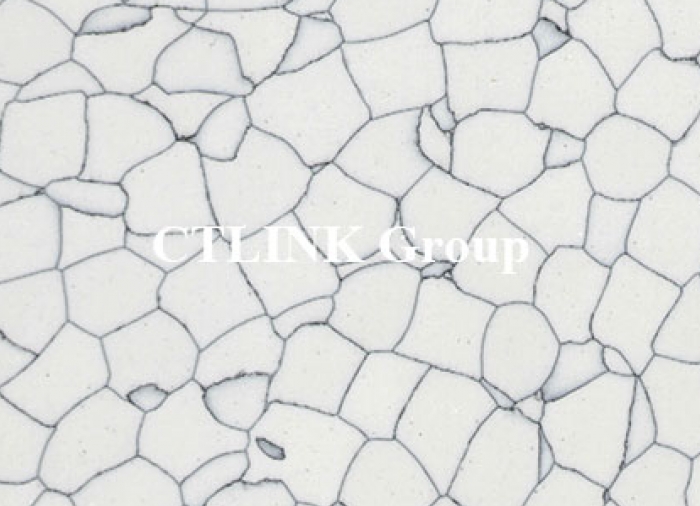

ESD/ Conducive Homogeneous Vinyl/ PVC Floor
What is the ESD TILE ?
ESD tile is a complete flooring solution. The exclusive four-part system comprised of tile, welding rod, copper foil, and glue, works together to dissipate electrostatic charges, protecting people and preventing damage to expensive equipment.
ESD Vinyl Flooring Rolls is also know as Anti-Static Flooring Rolls, which is a seamless floor covering whose style and patterns are constantly updated, comes with antistatic performance (Static-Dissipative or Conductive) making it the most used vinyl flooring product in operating room, manufacturing & assembly workshops of electronic products, telecommunications industry, computer room and other areas that require anti-static floor environment. The Anti-Static Vinyl Sheet Flooring is made up of large rolls without using much labor to cut the material, due to this, there is not much of wastage.

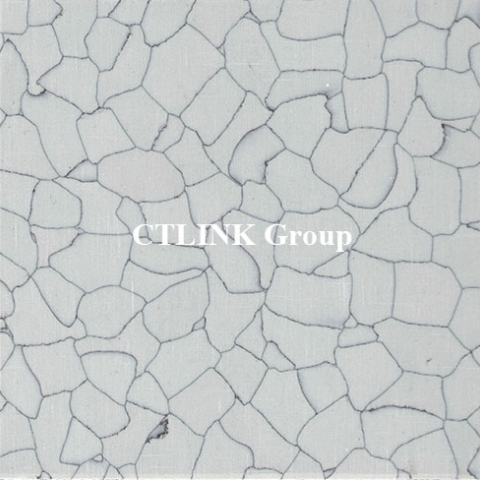

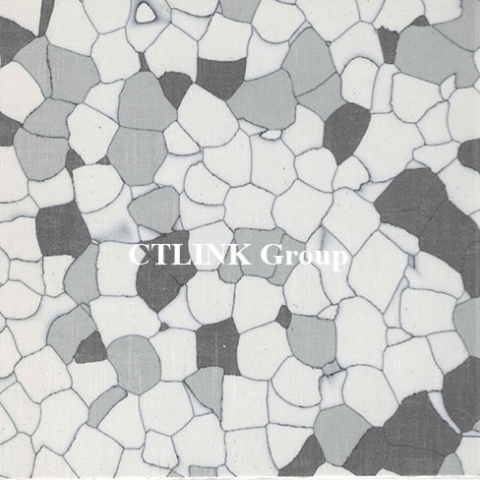

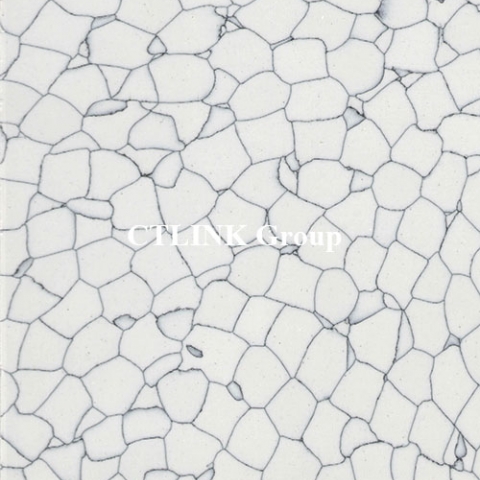

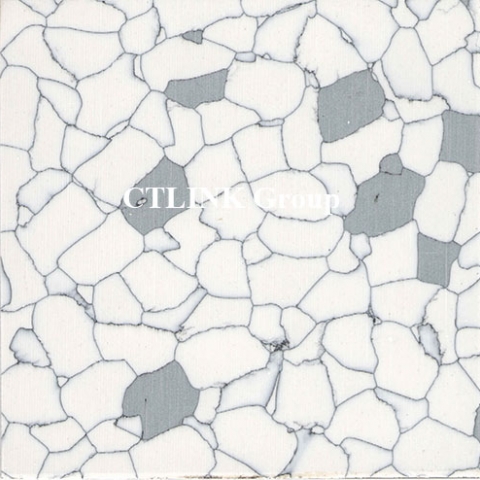

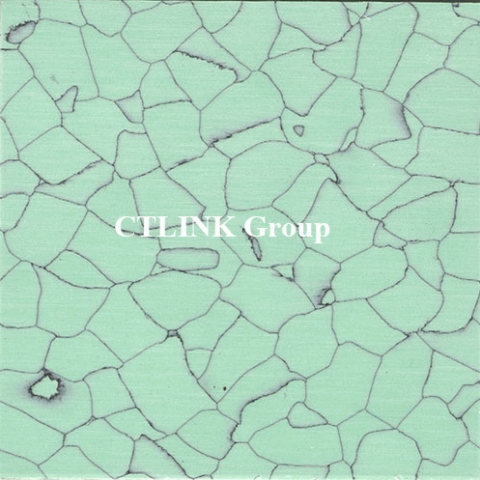

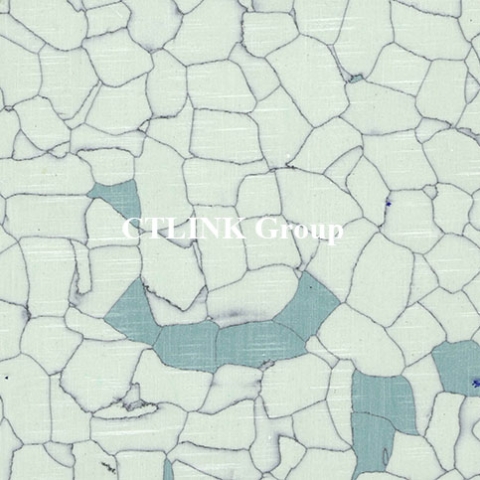

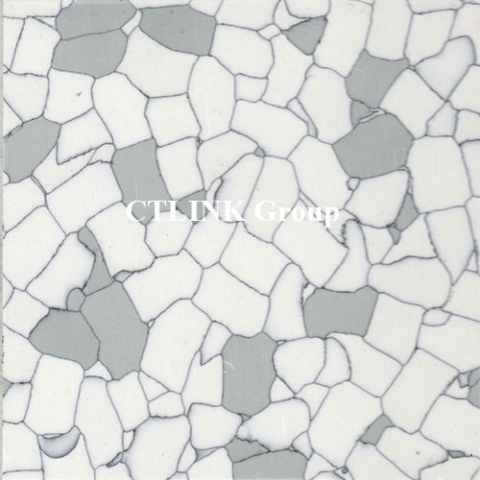

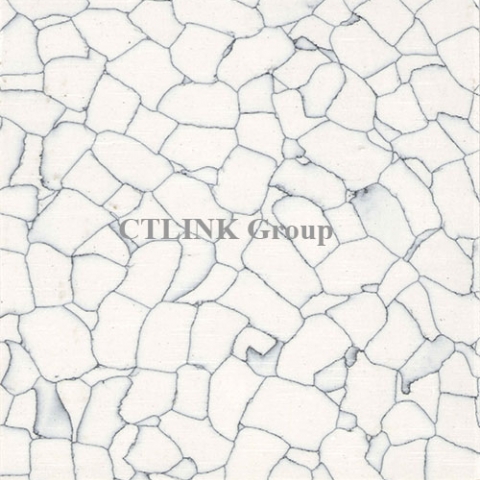

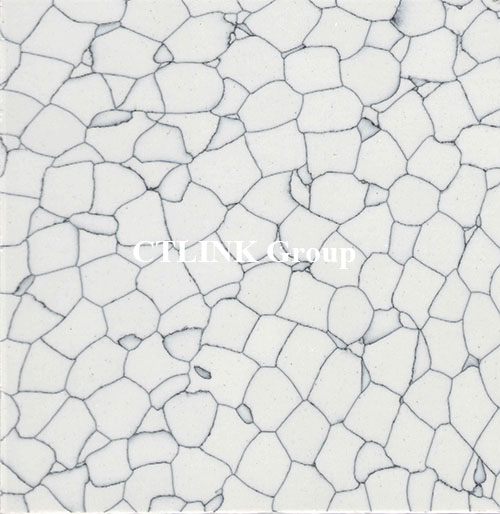

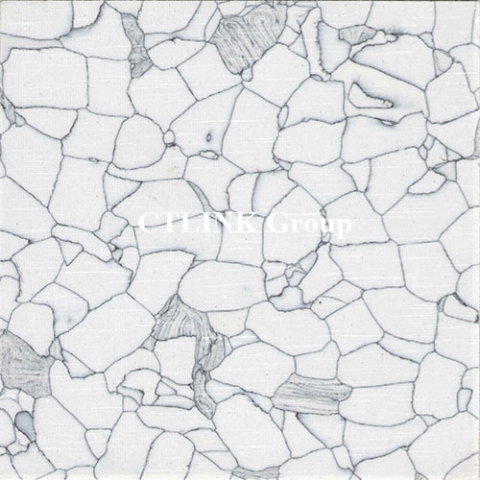

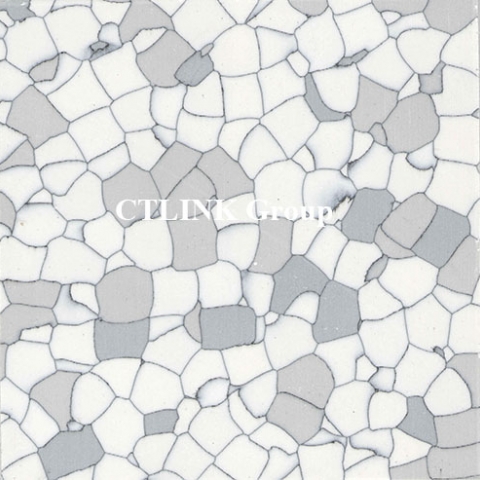

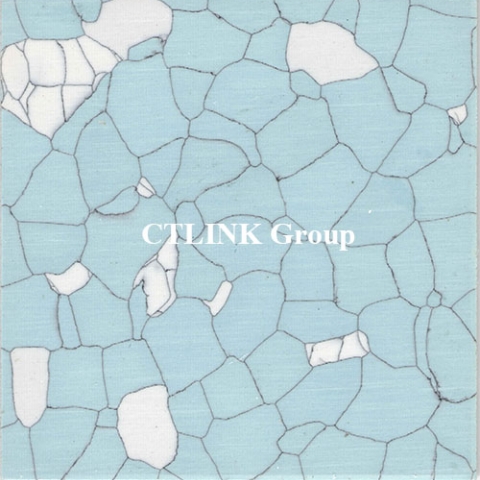

Color
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specifications
Date sheet:
|
Item |
Standard |
Index |
|
Size |
EN426 |
600*600mm |
|
610*610mm |
||
|
900*900mm |
||
|
Thickness |
EN428 |
2.0, 2.5, 3.0mm |
|
Weight |
EN430 |
2.0mm, 3.8kgs/m3 |
|
2.5mm, 4.8/kgs/m3 |
||
|
3.0mm, 5.8/kgs/m3 |
||
|
Surface Rresistance |
DIN51953 ASTMF-1550 or NFPA99 |
104-106 Ω Conductive |
|
106-109 Ω Dissipative |
||
|
Decay Time |
SJ/T10694-2006(VI<100V) |
Equal 0.4S |
|
Charge Voltage |
SJ/T10694-2006(VI<100V) |
Equal 70 |
|
Fire Resistance |
DIN 4102 |
B1 |
|
Combustion Properties |
SJ/T11236-2001(<10s,FV-0) |
Equal 0.35s Ifv-0 |
|
Amount of anti-wear |
SJ/T11236-2001(less than 0.02g/cm3, 110r) |
Equal 0.014 |
|
Anti-wear Properties |
EN660pt2 |
Ten-T < 2.0 mm3 |
|
Wheel Pressure |
EN425 |
No influence |
|
Residual Concavity |
EN433, DIN51955 |
0.03mm(2.0mm) |
|
0.035mm(2.5mm) |
||
|
0.04mm(3mm) |
||
|
Dimensional stability |
EN434 |
Less than 0.1% |
|
Color fastness |
IDO105BO2 |
At least 6 |
|
Resistance to chenmicals |
DIN423,DIN51958 |
offers excellent resistance ask for special sheet |
|
Impact sound absorption |
VLI, ISO104, ISO717 |
Approx 2dB |
|
Standard for health care facities |
NFPA99 |
Comfirm to the requirement of NFPA99 in effect at the line of installation |
Product Description
Features:
Eco-friendly: Non-toxic, Formaldehydeless , Free of heavy metals, No soluble volatile matter
Healthy: Antibacterial, Mouldproof, Anticorrosive, No smell
Safe: Non-slip, Anti-static, water-proof, fire-proof
Comfortable: Soft,Temperature constancy, Suitable elasticity, Absorption and noise reduction
Beautiful: more than 500 patterns and colors can be chosed, Beautiful and fashion
Long life: Latest europ technology and 100% virgin raw materials to make our products can be used more years.
ESD Tile
ESD Roll
Aplication:

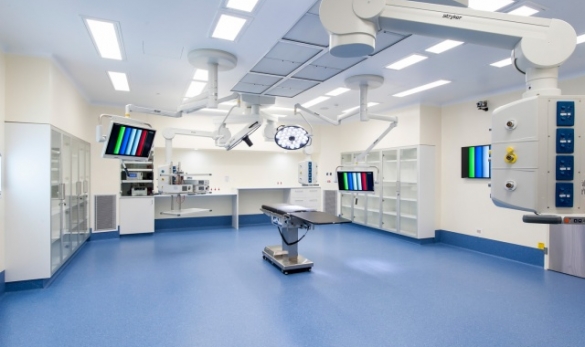

Our products are mainly used in the industries of telecommunication, electronics, microelectronics and medicine etc. (such as electronics factory, Data center, computer room, hospital, lab etc)
Our main products:
Homogeneous Directional Pvc Floor in Roll
Homogeneous Non-Directional Pvc Floor in Roll
Homogeneous Conductive Pvc Floor in Roll
Homogeneous Conductive Floor Tile
