500mm OA/ Bare Finish Steel Raised Access Floor System
500mm OA/ Bare Steel Cement Raised Floor
- Fireproof class A, moistureproof, dustrpoof, corrosion prevention
- High dimensional precision, strong loadability and shockproof
- Adjustable height for pedestal, assembly agility, large wire, good exchangeability
- Elegant appearance for paving wildly brand top tiles
- Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
- High recycled, convenient removing, saving cost, long performance life
Color
Technical specifications
CTLINK Bare Raised Access Floor
500x500x28mm OA/ Bare Steel Cement Raised Flooring
We, CTLINK Brand, are the Best Supplier & Manufacturer of OA/ Bare Steel Cement Raised Floor in Asean.

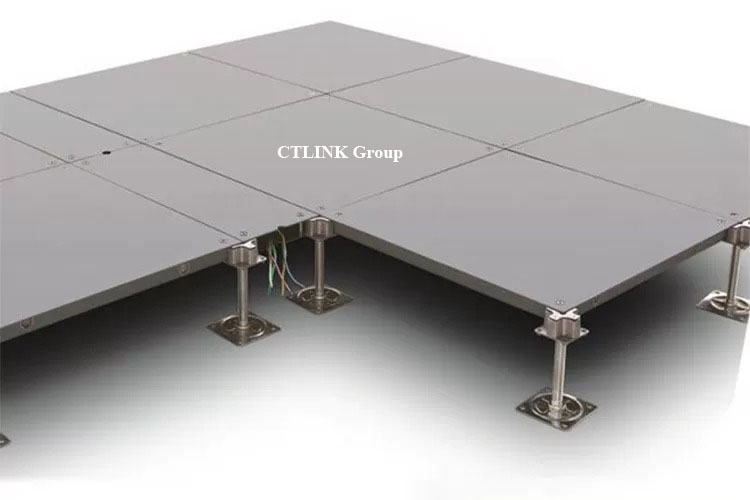

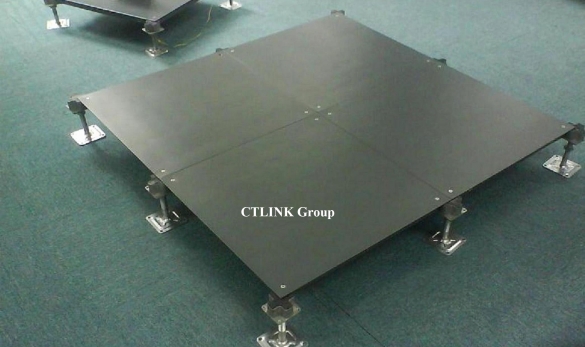

Structure of OA/ Bare raised floor
OA panel is made with high quality cold rolled steel, treated by stretch, spot welding, Parkerising and powder painting, each corner has 1 fixed hole.
CTLINK OA/ Bare Raised Floor System is mainly assembled with the durable bare steel heavy-duty OA/ Bare access flooring panel made from a combination of steel sheet outer shell and lightweight concrete core. They are found everywhere from intelligent office buildings and exhibition areas to call centers and educational facilities. And our Bare Access Floor system is rapidly being adopted in more and more settings due to design and material innovations.
Features of OA/ Bare raised floor:
- Make up of all steel sheet, high mechanic strength and loading capacity, excellent fire-proof performance.
- Surface was coated with static epoxy powder, light gloss, anti-wear and Anti-corrosion.
- High dimension accuracy, excellent interchange ability, easy to install and disassembly, convenient to maintenance.
Application
OA/ Bare raised floor System mainly used in intelligent buildings, meeting room, computer room, Audio-visual teaching room, Bank office, General Office, Control Centers, Showrooms, Call Centers, Museums, Exhibitions, Libraries, and other places required heavy-duty and cable management.
OA/ Bare raised floor Specification Chart
- Panel Size: 500x500x28mm(Thickness: 0.8mm top/1.2mm bottom) OR customized
- Tolerance: 0.25mm and a flatness tolerance of 0.5mm measured on a diagonal across the top of the panel

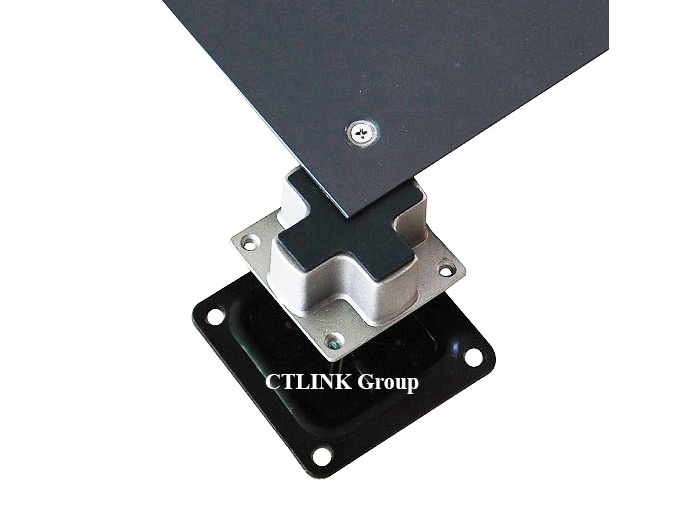

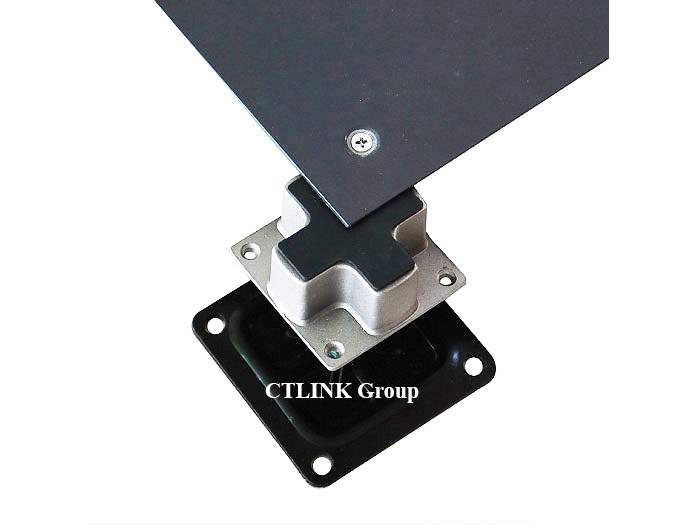

- Pedestal Height: Common adjustment range 35 - 150mm, adjustable and fixable according to customers' requirement
- Compliant Standards: CISCA Recommend Test Producers for Raised Floor (2007)
Type |
Size(mm) |
Concentrated Load Deflection =2mm |
Ultimated Load |
Uniform Load |
||||
LB |
N |
KGS |
LB |
N |
KGS |
N/M2 |
||
HH440 |
500*500*28 |
≥440 |
≥1960 |
≥200 |
≥1320 |
≥5880 |
≥600 |
≥9720 |
600*600*33 |
||||||||
HH662 |
500*500*28 |
≥662 |
≥2950 |
≥301 |
≥1990 |
≥8850 |
≥903 |
≥12500 |
600*600*33 |
||||||||
HH800 |
500*500*28 |
≥800 |
≥3560 |
≥363 |
≥2398 |
≥10670 |
≥1090 |
≥16100 |
600*600*33 |
||||||||
HH1000 |
500*500*28 |
≥1000 |
≥4450 |
≥453 |
≥3000 |
≥13350 |
≥1360 |
≥23000 |
600*600*33 |
||||||||
HH1250 |
500*500*28 |
≥1250 |
≥5560 |
≥567 |
≥3750 |
≥16680 |
≥1700 |
≥33000 |
600*600*33 |
Why Choose CTLINK OA Bare Access Floor System For Your Project?
- High-quality products, professional design and production, follow-up orders, and perfect after-sales service are promised to all clients.
- The most competitive price in the market, can provide the most cost-effective and time-saving manufacturing solutions according to customer requirements.
- Experienced customer service and engineering technicians provide detailed and professional technical support to customers at any time.
At CTLINK Group, we help you select the most cost-effective commercial Bare Raised Access Floor with a life cycle costing analysis, which shows the cost of your floor, both up-front and over time.
