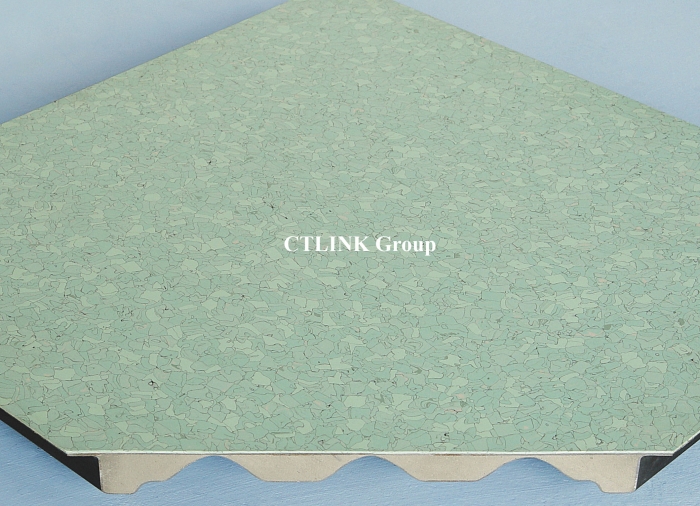

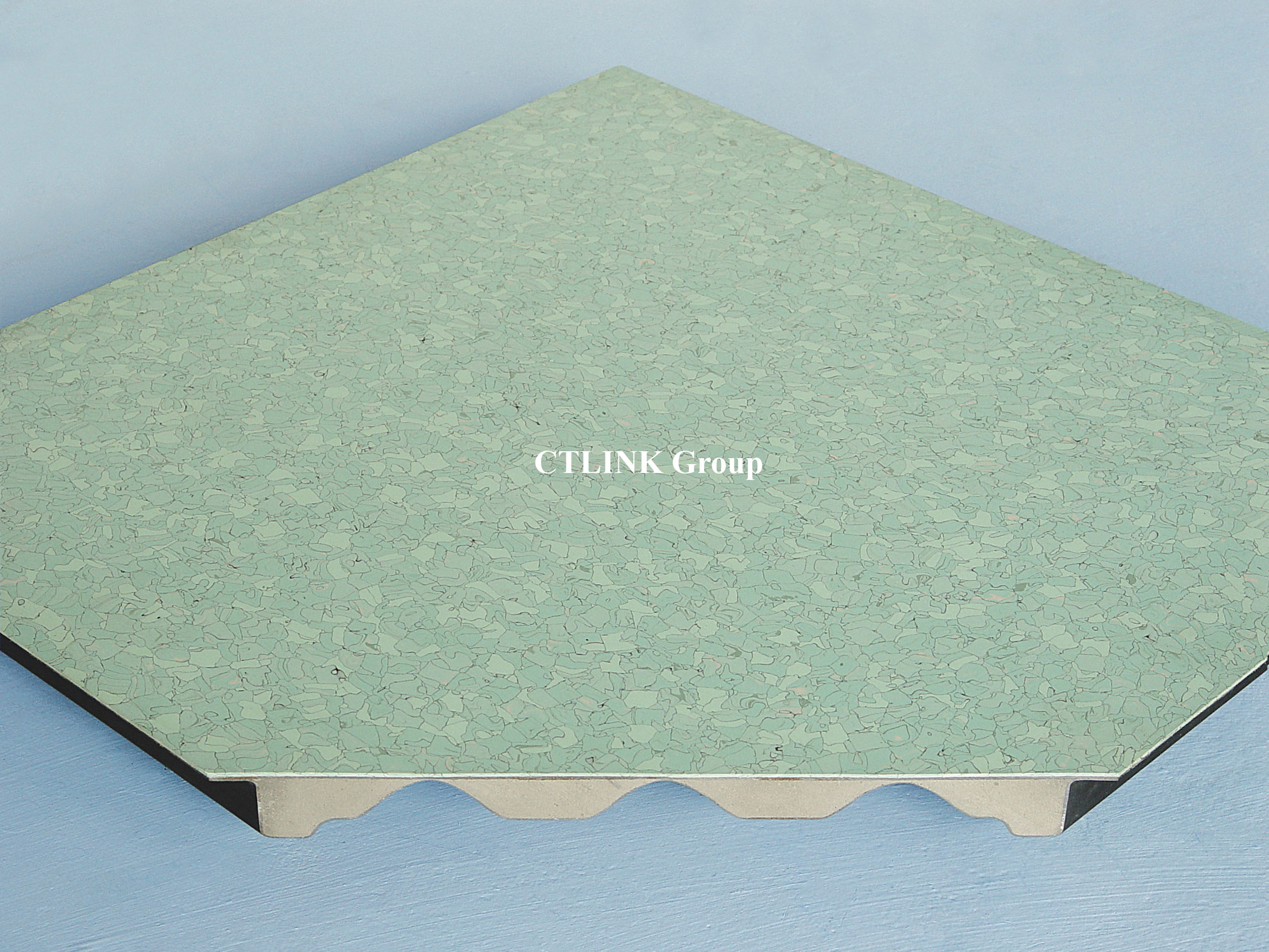

Conductive PVC/Vinyl steel raised floor

Conductive PVC/Vinyl steel raised floor

Code: PFS01
Price: Contact
Dimension: 600x600x35mm
Guarantee: 05 years
Weight: 13kg/pcs

PVC conductive vinyl tile is used both for raised floors and other flooring. This product has a permanent anti-static function because of the conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble for a decorative appeal.

Color

Conductive PVC/Vinyl steel raised floor
1
Conductive PVC/Vinyl steel raised floor
2
Conductive PVC/Vinyl steel raised floor
3
Conductive PVC/Vinyl steel raised floor
4
Conductive PVC/Vinyl steel raised floor
5
Conductive PVC/Vinyl steel raised floor
6
Conductive PVC/Vinyl steel raised floor
7
Conductive PVC/Vinyl steel raised floor
8
Conductive PVC/Vinyl steel raised floor
9
Conductive PVC/Vinyl steel raised floor
10
Conductive PVC/Vinyl steel raised floor
11
Conductive PVC/Vinyl steel raised floor
12
Conductive PVC/Vinyl steel raised floor
13
Conductive PVC/Vinyl steel raised floor
14
Conductive PVC/Vinyl steel raised floor
15
Conductive PVC/Vinyl steel raised floor
16

Technical specifications

CTLINK® RAISED ACCESS FLOOR SYSTEM
CONDUCTIVE PVC/ VINYL STEEL RAISED FLOOR SYSTEM

  • Item: Conductive PVC/ Vinyl steel raised floor
  • No.:  PFS01
  • Specifications: 600×600×35 mm
  • Panel material: Steel + Lightweight Cement



Drawing-of-HPL-steel-raised-floor   Cutting-Edge-of-HPL-steel-raised-floor

Drawing-of-HPL-steel-raised-floor                                              Cutting-Edge-of-HPL-steel-raised-floor



This product is made of quality steel plate, which is stretched forming, point welded and plastic sprayed with bubble cement filler filled in its inner cavity. The fire-resistant decoration plates that can endure high temperature adhere to its surface with conductive chips embedded around it. The pedestals and cross beams are wholly plated with zinc and the height of pedestals is adjustable and can be self-locked.


 Features of Conductive PVC/ Vinyl steel raised floor

  • Designed specially for computer room & clean room
  •  Excellent rolling load & ultimate load performance
  •  Light weight cementitious fill makes panels solid and quiet
  •  Completely non-combustible
  •  Black electrodeposition cathodic epoxy paint finish for life time protection
  •  Class A flame spread and smoke development rating
  •  Wide range of finishes available


Benefits of Conductive PVC/ Vinyl steel raised floor:

  • Excellent concentrated and rolling load performance
  • Freely interchangeable between panels
  • Epoxy powder coating  for lifetime protection
  • Concrete core make panel solid and quiet
  • Superior ultimate load performance
  • Completely non-combustible
  • Excellent grounding and electrical continuity
  • Flame spread and smoke development rating: Class A


Applicable Fields of Conductive PVC/ Vinyl steel raised floor

Computer rooms, programmed control equipment rooms, electrical-controlled classrooms, places that have requirements of dust-proof and anti-static, and fields with aerial requirements.



Conductive PVC/ Vinyl Colour Card

The size of PVC Tiles: 600*600*2.0/2.5/3.0(mm)
Standard Color: CTLINK-13


PVC conductive vinyl tile is used both for raised floors and other flooring. This product has a permanent anti-static function because of the conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble for a decorative appeal.

This flooring is widely used in program machine rooms, computer rooms, power adjustment houses, purification workshops, and in the telecom, electronics, micro-electronic and medicine industries.



Features of Conductive PVC/ Vinyl Tile:
  • Surface system electric resistance: 1 x 105 - 1 x 108Ω
  • Static electricity decay period: (±500 - ±5,000V)≥2S
  • Amount of wear: ≤0.020g/cm⊃2
  • Combustion property: FV-0 < 10S
  • Starting voltage: V < 100V




Understructure of Conductive PVC/ Vinyl steel raised floor:



If specified any understructure can be customized with an electro-galvanized, gold chromatised, or electrophoretic coating.
Colors: Available in silver, yellow/tan, or black



Flat Steel Head Pedestal

The pedestal design utilizes a 75mm square head. The base plate is normally 100mm square and includes provision for the use of mechanical fixing to the sub-floor or adhesive. The pedestal head design allows for the use of bolt-on stringers if required. All components are free of electro-zinc, a potential source of zinc whiskers.

Pedestal Height: 80mm -1500mm. Each pedestal allows for approximately 15mm-25mm height adjustment.


Pedestal Types:


Pedestal-F01

flat-pedestal-head-steel-raised-floor

Specially designed for finished panels below 130mm height
as standard pedestals.

Specification:

  • Flat pedestal head size 75x75x3mm, Rob M18
  • Square Base Plate size 100x100x2mm









Pedestal-F02


Specially designed for finished panels above150mm heightflat-pedestal-head-steel-raised-floor
as standard pedestals.


Specification:

  • Flat pedestal head size 75x75x3mm, Rob M18
  • Square Base Plate size 100x100x2mm
  • Tube 1: D22mm tube*1.2/ 1.5mm Thick Wall/ M18 Screw
  • Tube 2: 25mm tube*1.2/ 1.5/ 1.8mm Thick Wall/ M18 Screw

     Above types of tubes should be available according to your requirements.





Pedestal-F03flat-pedestal-head-steel-raised-floor

Specially designed for finished panels above 900mm height
as standard pedestals.


Specification:

  • Flat pedestal head size 75x75x3mm, Rob M18
  • Square Base Plate size 125x125x3mm
  • Tube 1: 25mm tube*1.2/ 1.5/ 1.8mm Thick Wall/ M18 Screw
  • Tube 2: 32mm tube*1.2/ 1.5/ 1.8mmThick Wall/ M18 Screw


Above types of tubes should be available according to your requirements.





Stringer ST for 600x600mm Rigid Grid System

  • Type ST-1173: 20x30x1173mm (use for steel raised floor)

  • Type ST-570: 20x30x570mm (use for steel raised floor )



stringer-for-HPL-steel-raised-floorstringer-for-HPL-steel-raised-floor
                         Stringer ST-570                                                                 Strigner ST-1170







PERFORMANCE SELECTION CHART

Panel surface HPL
Size 600 x 600mm
Thickness in mm 35
Fire Rating 1
Top Steel Sheet in (mm) 0.7
Bottom Steel Sheet in (mm) 0.9
Safty factor >= 3
Defletion <= 2.5mm


      CONCENTRATED LOAD
  UNTIMTE LOAD DEFLECTION UNIFORM LOAD IMPACT LOAD ROLLING LOADS
PANEL 0.100"/2.5mm 0.080"/2.0mm 10 PASS 10K PASS
(lb) (kN) (lb) (kN) (lb) (kN) (lb/㎡) (kN/㎡) (lb) (kg) (lb.) (kN) (lb) (kN)
FS 700 2300 10.224 700 3.112 650 2.889 2500 11.113 100 45 650 2.889 450 2.000
FS 800 2600 11.558 800 3.556 750 3.334 2800 12.447 100 45 750 3.334 550 2.445
FS 1000 3300 14.669 1000 4.445 800 3.556 3500 15.558 150 68 800 3.556 600 2.667
FS 1250 3800 16.892 1250 5.557 1000 4.445 4000 17.781 250 68 1000 4.445 800 3.556
FS 1500 5000 22.226 1500 6.668 1250 5.557 5200 23.115 150 68 1250 5.557 1000 4.445
FS 2000 6000 26.672 2000 8.891 1500 6.668 6200 27.561 175 79 1500 6.668 1200 5.334




CTLINK Bolted Stringer System for Conductive PVC/ Vinyl Finished Cementitious Infill Steel Access Floor System --- Pedestal/Stringer
Pedestal No. Pedestal Height (mm) Horizontal Load (kG) Vertical Load (18 kN) Pedestal Head Pedestal Tube Pedestal Base
FS-L-PST80 80 ± 20 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST100 100 ± 20 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST150 150 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST200 200 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST250 250 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST300 300 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST350 350 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST400 400 ± 25 50 Did not collapse □75x75x3mm flat Ф 22mmx1.2mm thick □100x100x2mm thick
FS-L-PST450 450 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST500 500 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST550 550 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST600 600 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST650 650 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST700 700 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST750 750 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x2mm thick
FS-L-PST800 800 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x3mm thick
FS-L-PST850 850 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x3mm thick
FS-L-PST900 900 ± 25 50 Did not collapse □75x75x3mm flat Ф 25mmx1.2mm thick □100x100x3mm thick
FS-L-PST950 950 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □100x100x3mm thick
FS-L-PST1000 1000 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □125x125x3mm thick
FS-L-PST1050 1050 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □125x125x3mm thick
FS-L-PST1100 1100 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □125x125x3mm thick
FS-L-PST1150 1150 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □125x125x3mm thick
FS-L-PST1200 1200 ± 25 50 Did not collapse □75x75x3mm flat Ф 32mm × 1.5mm thick □125x125x3mm thick
Stringer No. Stringer Length Vertical Load (150 kG) Tube Thick Tube
ST 570 mm Did not collapse 1.0 mm □30 × 20 mm






  Why an Access Floor?

  • Construction programmes are reduced by at least two weeks per floor due to elimination of a sand cement screed.
  • As warm air rises, considerable cost savings are achieved by an underfloor air plenum delivering conditioned air exactly where it is needed - compared with the traditional uneconomic alternative of forcing conditioned air from the ceiling.
  • Maximum flexibility for the installation and reconfiguring of services to equipment and workstations a matter of hours.
  • In new construction the use of an access floor for total service distribution reduces the overall building height by about 13%. Or, for the same height, you can increase the number of floors.
