600mm OA/ Bare raised access floor

600mm OA/ Bare raised access floor

Code: OA500
Price: Contact
Dimension: 500x500x28mm
Guarantee: 05 years
Weight: 12kg/pcs

Concrete Core Steel Bare Panels Concrete core steel bare panels are consisted of a flat steel top sheet welded to a formed steel bottom sheet filled with full light weight cement and steel surface are epoxy powder coated, which are also called "cementitious infilled steel bare panels".

Color

600mm OA/ Bare raised access floor

Technical specifications




CTLINK® RAISED ACCESS FLOOR
CTLINK® Network Raised Floor (Bare Panel)


  • Item: OA/ bare steel cementious raised floor system (Network Raised Floor)
  • NO: OA600
  • Specifications: 600×600×35 mm
  • Panel material: Steel + Lightweight Cement


Products Shape / Variations

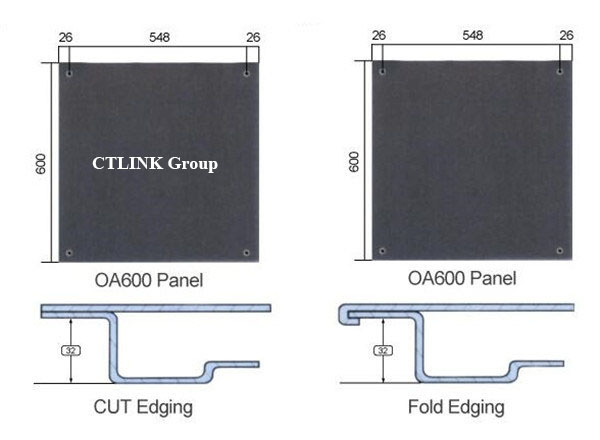

Panel Type OA600A OA600C1 OA600C2 OA600C3
Product shape  shape-of-oa-bare-steel-raised-floor-panel  shape-of-oa-bare-steel-raised-floor-panel shape-of-oa-bare-steel-raised-floor-panel shape-of-oa-bare-steel-raised-floor-panel



 Edging-of-oa-bare-steel-raised-floor-panel
                     Edging-of-oa-bare-steel-raised-floor-panel

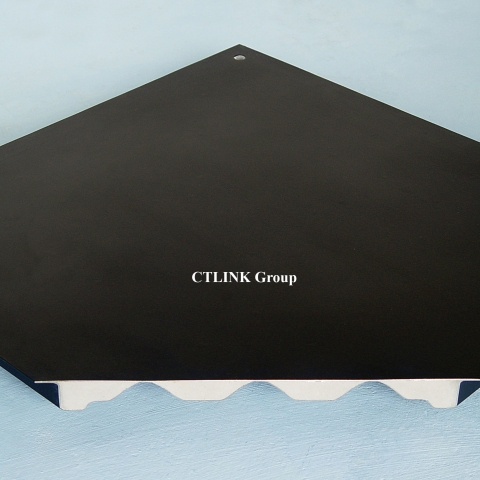

Concrete Core Steel Bare Panels Concrete core steel bare panels are consisted of a flat steel top sheet welded to a formed steel bottom sheet filled with full light weight cement and steel surface are epoxy powder coated, which are also called "cementitious infilled steel bare panels".

A four-square independently supports the structure. The upper Board is made from extra-hard steel board, and the lower board has been pulled deeply. The flooring surface is processed with anti-static coating, and the inside is filled with foamed cement. Zinc plating is used for the base support, and the height can be adjusted and locks automatically. The rounds of the floor have cut-line and rivet joints to make the shape.

OA Steel Panel is composed of whole-steel flooring, whole-steel support, anti-static carpeting and other finishes. This high-intensity flooring has a high load capacity and is fire, moisture, and static-proof.


Areas of Use:Offices
  • Bank sections and centers
  • UPS rooms
  • System Rooms (Banks, Companies, Factories etc.)
  • Control Rooms (Dams, Powerhouses etc.)
  • Signalization Rooms (Subway Systems)
  • Laboratories
  • Computer Rooms (Educational Institutions, Internet Cafes etc.)
  • The places which need to be modif ied regularly (Fairs, Showrooms, Shopwindows etc.)

Features:
  • Long use life, compact size, easy to change and maintain, flexible, reusable
  • Easy to install
  • Whole-steel construction, impact-resistant, scuff-resistant, corrosion-proof
  • High regulating range of 35 ~ 150mm
  • Comfortable to walk on, appealing to look at
  • Abundant space for wiring
  • Heavy loading performance and excellent fire-rate.
  • Special and scientifical design of ball stretch, wider bottom edge board,reinforcement rib etc, imporove panel loading performance.
  • Precise dimension, great interchangeability.
  • Dark-Grey Epoxy coating, hard wearing and anti-corrosive.
  • Suitable for top-grade office buildings, computer labs, classrooms, network rooms, and other areas that require comprehensive wiring



Understructure:
If specified any understructure can be customized with an electro-galvanized, gold chromatised, or electrophoretic coating.
Colors: Available in silver, yellow/tan, or black

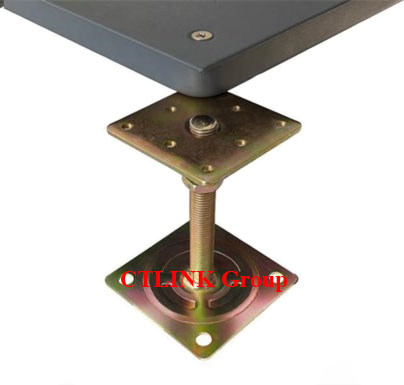

Flat Steel Head Pedestal
The pedestal design utilizes a 75mm square head. The base plate is normally 100mm square and includes provision for the use of mechanical fixing to the sub-floor or adhesive. The pedestal head design allows for the use of bolt-on stringers if required. All components are free of electro-zinc, a potential source of zinc whiskers.

Pedestal Height: 80mm -400mm. Each pedestal allows for approximately 15mm-25mm height adjustment.


Pedestal Types:

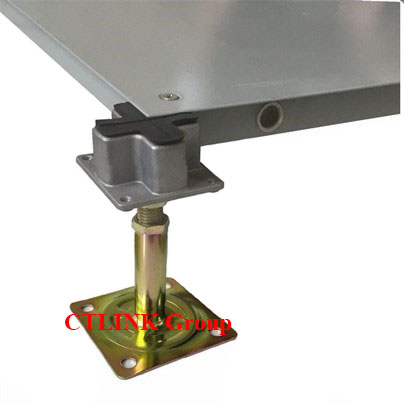

Pedestal-C01
aluminum-cross-head-oa-bare-pedestal-raised-floor
Special designed for 500mm panel system.Used as standard pedestal.

Spec.:
Die-casting Aluminum head, M16 Rob
Square Base Plate size 100x100x2mm

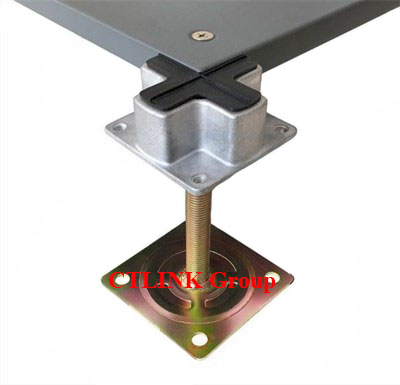

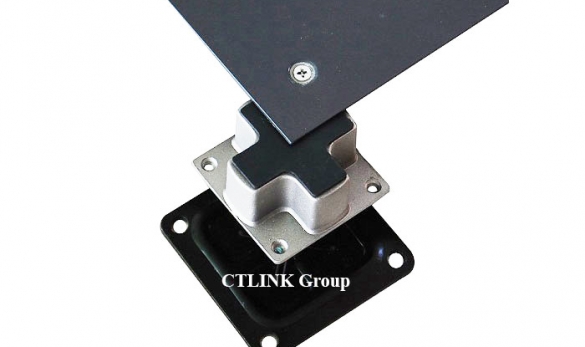

Pedestal-C02
aluminum-cross-head-oa-bare-pedestal-raised-floorSpecial designed for 600mm panel system.Used as standard pedestal.
Advantages: Convenient for panel installation. One screw to lockfour pieces of panels.

Spec.:
Die-casting Aluminum head, M18 Rob
Square Base Plate size 100x100x2mm
Tube 1: D22mm tube*1.2/1.5/1.8mm Thick Wall/ M18 Screw
Tube 2: 25mm tube*1.2/ 1.5/ 1.8mm Thick Wall/ M18 Screw
Tube 3: 32mm tube*1.2/ 1.5/ 1.8mmThick Wall/ M18 Screw

Above 3 types of tubes should be available according to your requirements

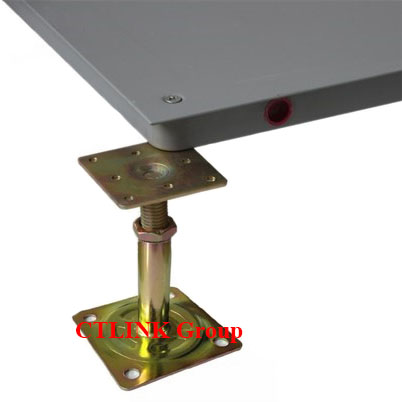

Pedestal - F01

Specially designed for finished height panels below 150mm heightaluminum-cross-head-oa-bare-pedestal-raised-floor
as standard pedestals.

Spec.:
Flat pedestal head size 75x75x3mm, Rob M18
Square Base Plate size 100x100x2mm
Above types should be available according to your requirements.




Pedestal - F02
Specially designed for finished height panels above 150mm heightaluminum-cross-head-oa-bare-pedestal-raised-floor
as standard pedestals.

Spec.:
Flat pedestal head size 75x75x3mm, Rob M18
Square Base Plate size 100x100x2mm
 Tube 1: D22mm tube*1.2/1.5/1.8mm Thick Wall/ M18 Screw
Tube 2: 25mm tube*1.2/ 1.5/ 1.8mm Thick Wall/ M18 Screw
Tube 3: 32mm tube*1.2/ 1.5/ 1.8mmThick Wall/ M18 Screw

Above 3 types of tubes should be available according to your requirements.

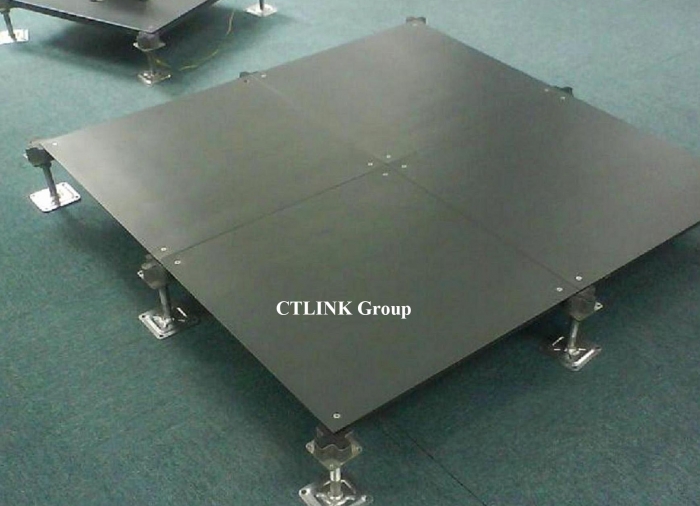

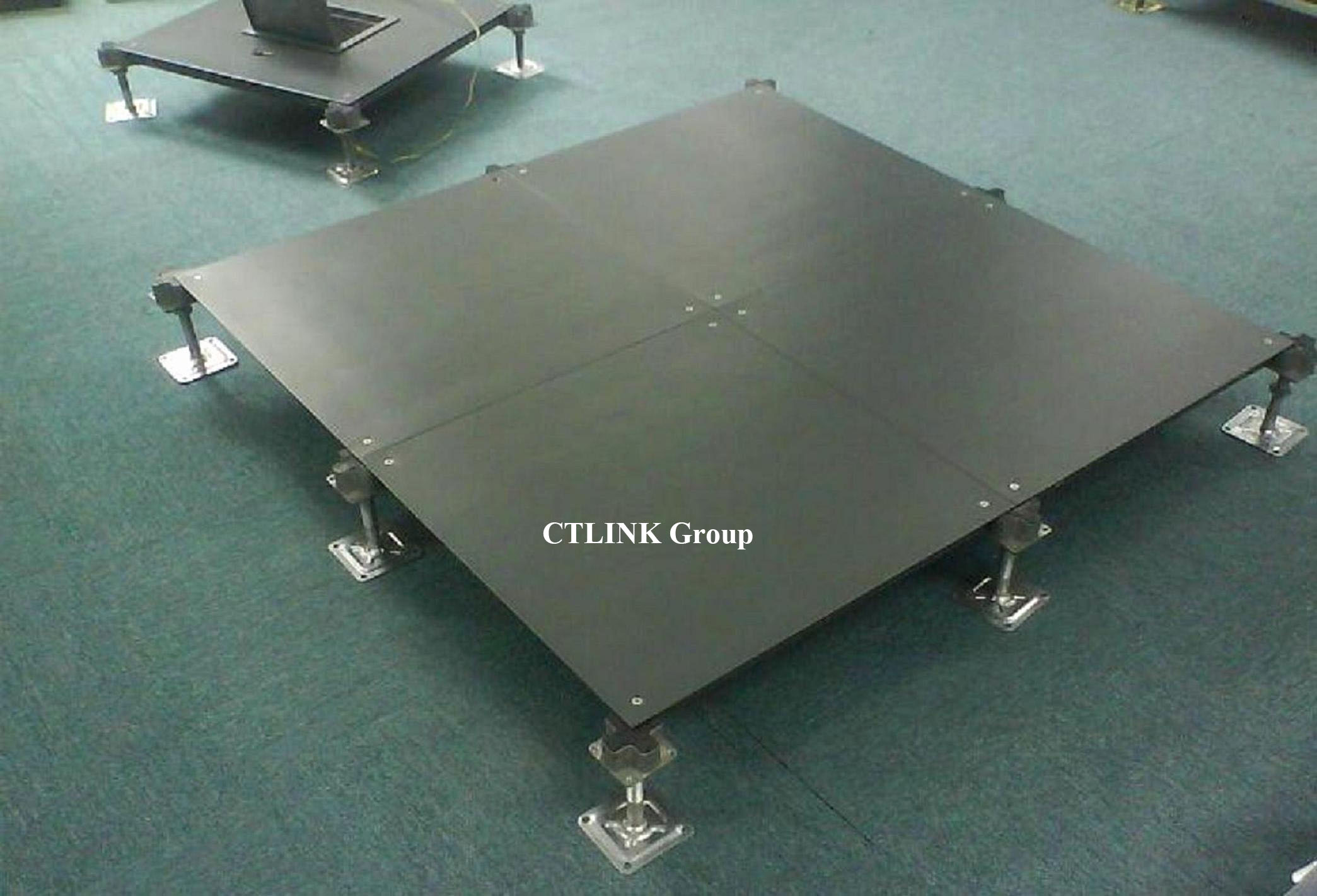

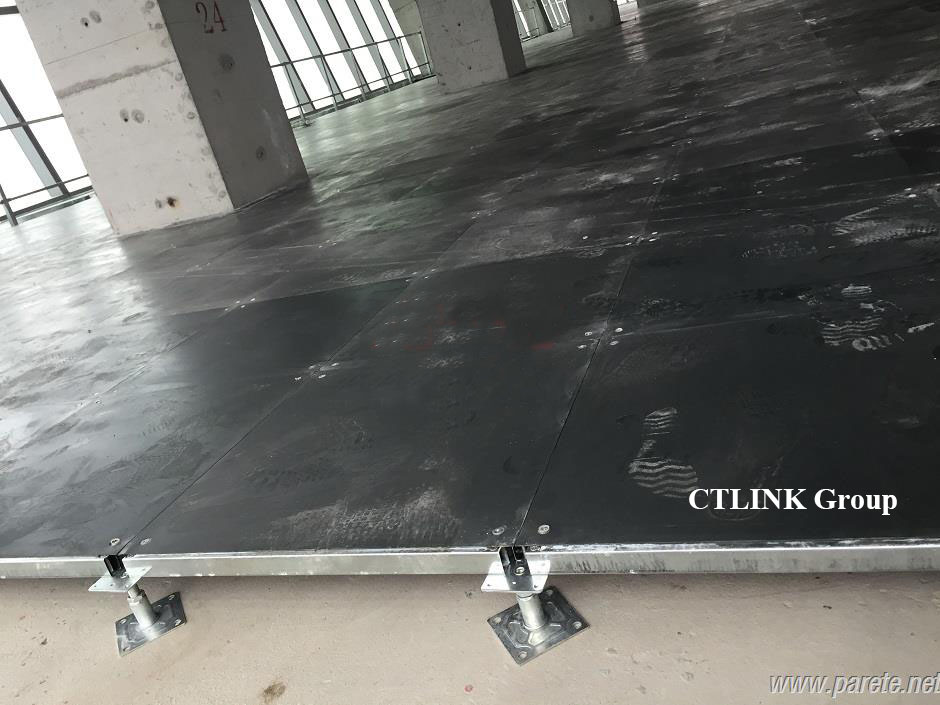

 Installed Example

installation-oa-bare-steel-raised-floor







PERFORMANCE SELECTION CHART

CTLINK 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type Description Concentrated Load/Deflection
(kN/mm)
Ultimate Load (kN) Standard FFH Weight (kG/m2)
OA800A 300kG Solid OA Floor Panel Center of the panel: 5000/2.0
Center of the edge: 5000/2.5
Center of the panel: 15000
Center of the edge: 12000
70~200 mm 36
OA800C 300kG Dual Cutout OA Floor Panel Center of the panel: 4500/2.0
Center of the edge: 4500/2.5
Center of the panel: 12000
Center of the edge: 10000
70~200 mm 36
OA1000A 500kG Solid OA Floor Panel Center of the panel: 6000/2.0
Center of the edge: 6000/2.5
Center of the panel: 18000
Center of the edge: 14000
70~200 mm 39.6
OA1000C 500kG Dual Cutout OA Floor Panel Center of the panel: 5500/2.0
Center of the edge: 5500/2.5
Center of the panel: 15000
Center of the edge: 12000
70~200 mm 39.6


CTLINK Corner Lock Pedestal for OA Floor
Pedestal No. Pedestal Height (mm) Horizontal Load (kG) Vertical Load (18 kN) Pedestal Head Pedestal Thread Rod Pedestal Base
OA-PST80 80 ± 20 50 Did not collapse Ф80mm cruciform Ф 16mm thick □95mm × 2mm thick
OA-PST100 100 ± 20 50 Did not collapse Ф80mm cruciform Ф 16mm thick □95mm × 2mm thick
OA-PST150 150 ± 25 50 Did not collapse Ф80mm cruciform Ф 16mm thick □95mm × 2mm thick
OA-PST200 200 ± 25 50 Did not collapse Ф80mm cruciform Ф 16mm thick □95mm × 2mm thick
OA-PST250 250 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
OA-PST300 300 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
OA-PST350 350 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
OA-PST400 400 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
OA-PST450 450 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
OA-PST500 500 ± 25 50 Did not collapse Ф80mm cruciform Ф 22mm×1.2mm thick □100mm × 2.0mm thick
